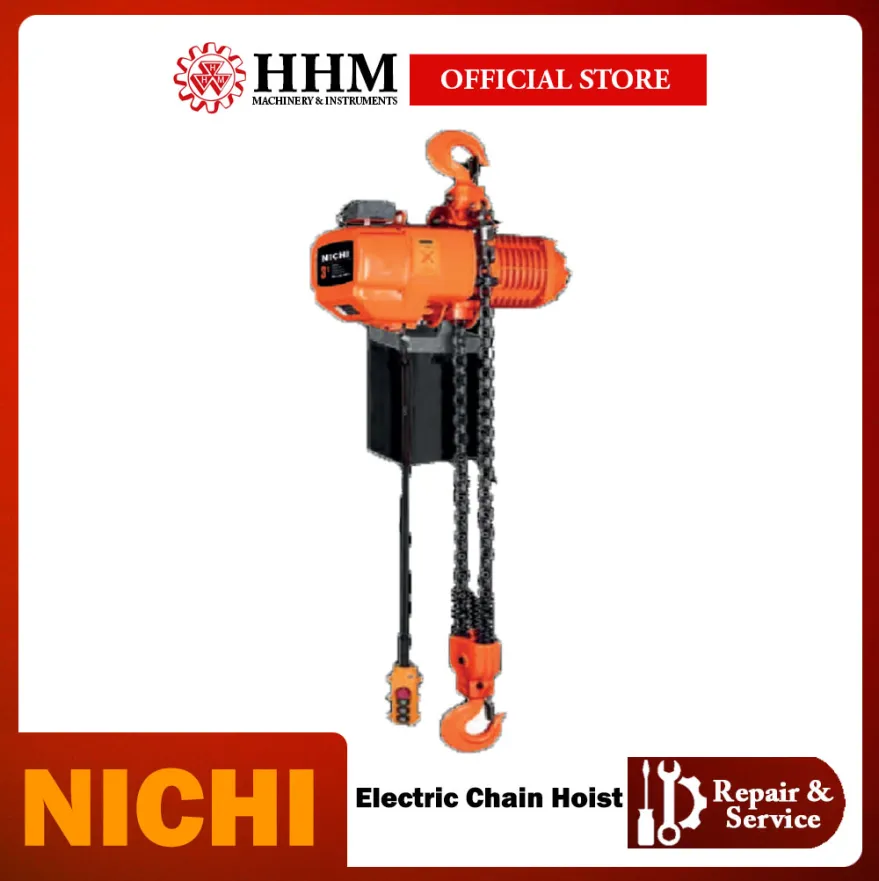

( PRE-ORDER 1 WKS ) NICHI Electric Chain Hoist EC Type
RM 19,200.00
SKU: NIC-EC5050
138.000 KG
Quantity
Select Option
- 6 meters lifting height and power supply cable as standard accompanies, can be made as your request.
- Canvas chain container is standard accompanies. Steel chain is available if lifting height is more than capacity of the standard container volume
- Emergency stop button on the push button, push down it the motor circuit will be cut off
- Remote control, travel limiter, overload limiter, rain cover can be added.
| Model | Capacity / Lifting Height | Lifting Speed | Power | No.Of Chain Fall | Spec.Of Load Chain | Dimension | N.W |
| EC5010 | 1 ton x 6m | 6.6m/min | 1.5kw x 415v | 1 | 7.1mm | 520 x 300 x 650mm | 61kg |
| EC5020 | 2 ton x 6m | 6.6m/min | 3.0kw x 415v | 1 | 10.0mm | 615 x 430 x 800mm | 110kg |
| EC5030 | 3 ton x 6m | 5.4m/min | 3.0kw x 415v | 1 | 11.2mm | 615 x 430 x 845mm | 115kg |
| EC5050 | 5 ton x 6m | 2.7m/min | 3.0kw x 415v | 2 | 11.2mm | 615 x 430 x 1030mm | 138kg |
