( PRE-ORDER 1 WKS ) SOYER Stud Welding Machine ( BMS-10N )
RM 30,100.00
SKU: SOY-BMS10N-PS3K
21.000 KG
Quantity

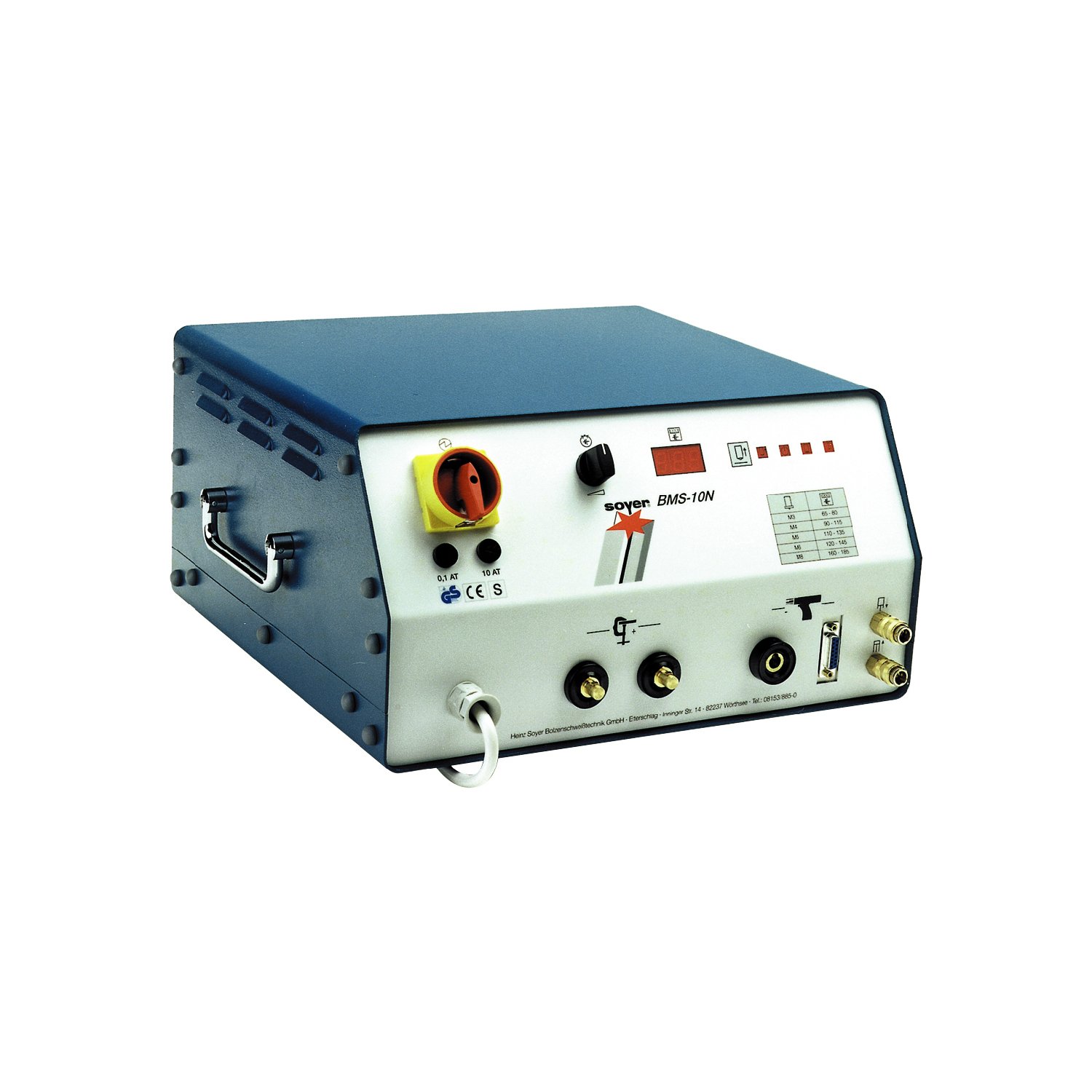

The BMS-10N SOYER stud welder can be used for both mobile and stationary application. It is optimally suitable for being operated with welding guns, welding heads and bench welders with manual or automatic stud feed and allows high-quality stud welded joints to be produced.
Technical Specification:
| Welding Range | M3-M10 or 3-10mm with steel and stainless steel, M3-M8 or 3- 8mm with aluminium and brass depending on respective requiremments |
| Welding process | Capacitor discharge process ( CD ) as per EN ISO 14555 with gap contact welding |
| Standard gun | PS-3 Positioning welding gun |
| Power source | Capacitor battery |
| Chaarging capacity | 88,000 uf |
| Charging voltage | 55-220v, infinitely variable up/down |
| Welding time | 0.001-0.003 seconds |
| Welding sequence | Up to 20 studs/min , depending on stud diameter |
| Mains supply | 115/230V 50/60 Hz 8-16 A |
| Dimensions | 430 x 220 x 430mm ( W x H X D ) |
| Weight | 21 kg |
