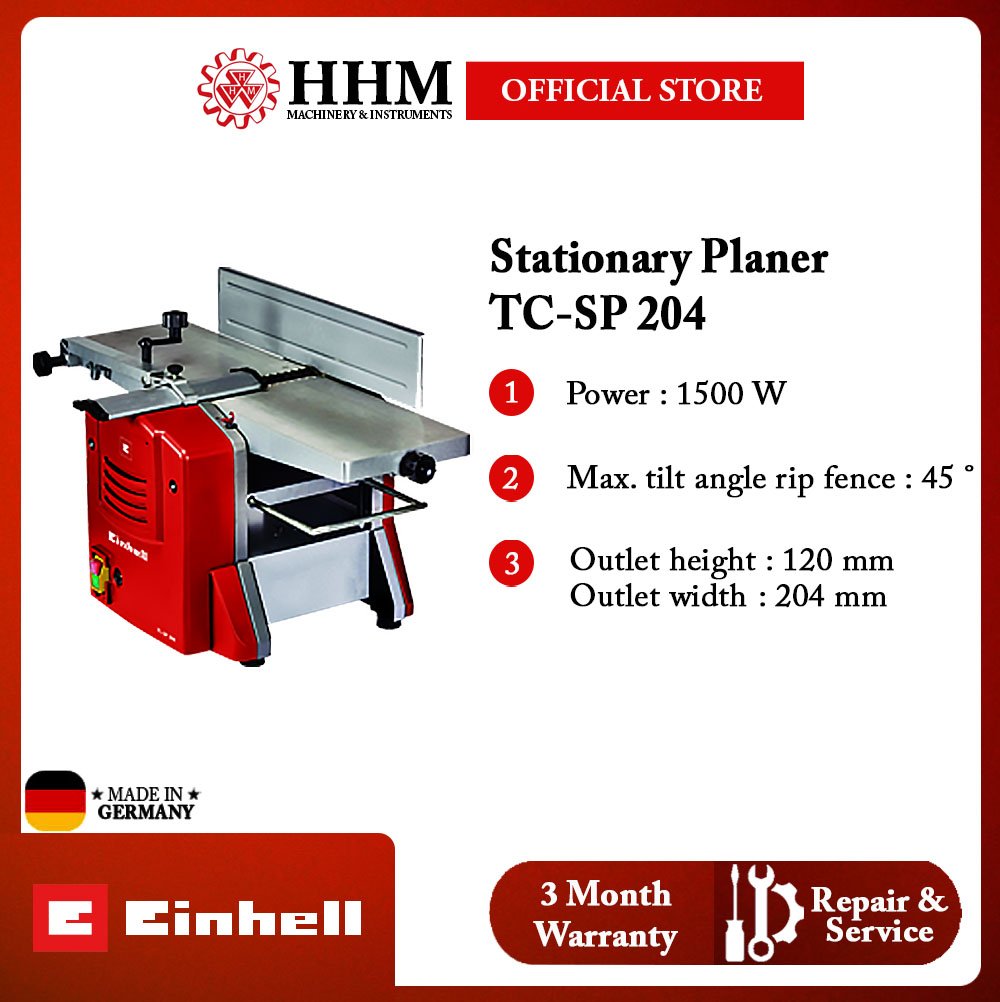

EINHELL Stationary Planer (TC-SP 204)
RM 2,200.00
SKU: TC-SP 204
30.000 KG
85 cm (L) x 42 cm (W)
Product Description
The TC-SP 204 stationary plane is a high-quality machine for precise, speedy thicknessing and surfacing tasks. The thicknessing plane with pull-out workpiece supports is easy to handle.
The practical chip extractor ensures clean working and a clean workplace.
Features
Features
- Sturdy, solid construction
- Aluminium surfacing plane table with tiltable stop for routing
- Thicknessing plane with pull-out workpiece supports
- Chip extractor for a clean workplace
- Vibration-absorbing feet for stability
- Overload switch and zero voltage switch for safe operation
| MODEL | TC-SP 204 |
|---|---|
| Item number | 4419955 |
| Mains supply | 230-240 V | 50 Hz |
| Power | 1500 W |
| Idle speed | 9000 /min |
|
Max. material removal at surface planing |
3 mm |
|
Max. material removal at tickness planing |
2 mm |
| Max. planing width | 204 mm |
| Max. thickness opening | 120 mm |
| Feed rate | 6 m/min |
| Size of feed table | 370 x 210 mm |
| Size of planing table | 370 x 210 mm |
| Size of thicknessing table | 270 x 210 mm |
| Max. tilt angle of parallel guide | 45° |
| Diameter of suction adapter | 100 mm |
| Product weight | 24 kg |
| Gross weight single packaging | 30 kg |
| Dimensions single packaging | 850 x 460 x 425 mm |

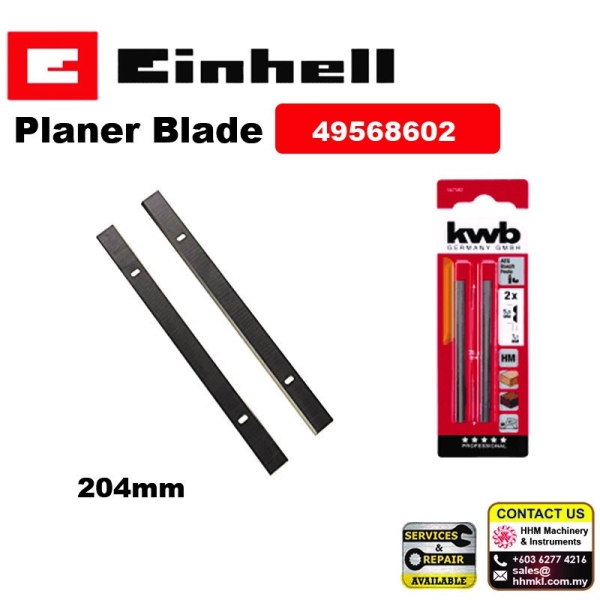

EINHELL Stationary Planer Accessories Blade Set (TC-SP 204)
RM 120.00
