( PRE-ORDER 1 WKS ) TELWIN Digital Car Spotter 5500 with Trolley
RM 7,700.00
SKU: TEL-DIGISPOTTER5500-S WITH 803074
28.000 KG
110 cm (L) x 70 cm (W) x 51 cm (H)
Quantity

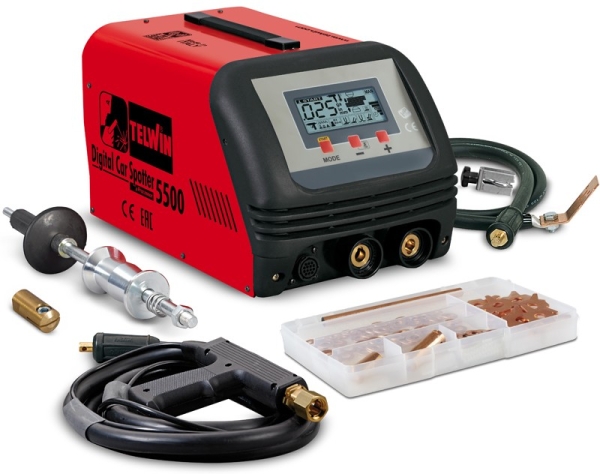

TELWIN Spot Welding Machine – Digital Car Spotter 5500 with Trolley 803074
Microprocessor controlled, spot-welding machine fit for applications in car body shops.
The LCD digital, multifunction control panel allows the automatic regulation of spot welding parameters according to the chosen tool and sheet thickness.
Complete with the “STUDDER” kit for spot welding of screws, washers, rivets and pulling stars, sheet warming and upsetting.
metalworking machines
Technical Specification:
Model : Digital Car Spotter 5500
Code : 823219
Single phase mains voltage : 230 V
Mains frequency : 50 / 60 Hz
Peak spot-welding current : 4200 A
Max. no load voltage : 6 V
Max. absorbed power : 11 kW
Rated power x=50% : 2 kW
Power factor : 0.7 cosphi
Max. welding thickness on 2 sheets : 1.5 + 1.5 mm
Duty cycle : 3 %
Protection degree : IP 22
Dimensions : 39 x 26 x 22.5 cm
Weight : 26 kg
